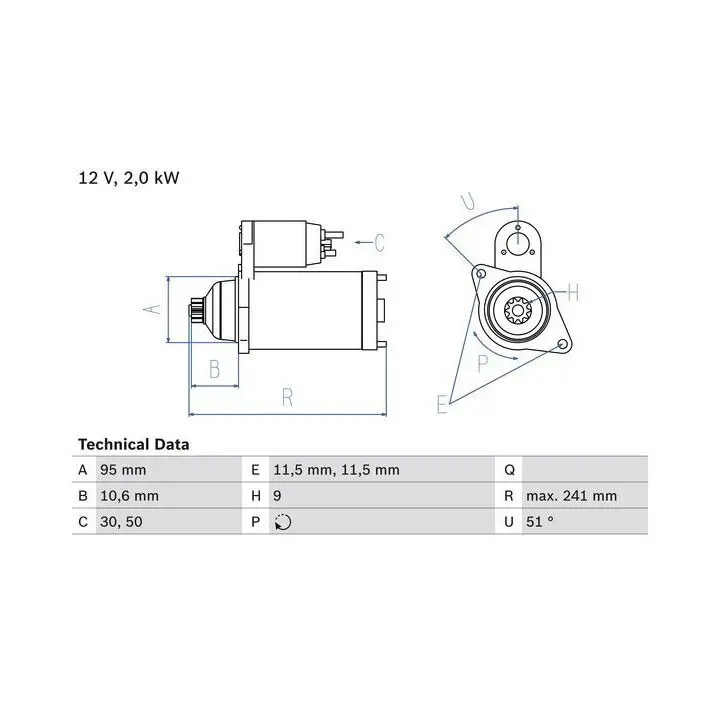

Starter Nissan Frontier D21,D22 Urvan E23, E24 QD32 Eng

Voltage 12 V
Rated Power 2 kW
Number of mounting bores 2
Number of threaded holes 0
Number of Teeth 9
Clamp 50
Clamp 30
Flange Diameter 95 mm
Rotation Direction Clockwise rotation
Pinion Rest Position 10.6 mm
Starter Type Floating pinion
Bore Diameter 11.5 mm
Bore Diameter 2 11.5 mm
Position/Degree links
Mounting Angle 51 degrees
Fastening hole angle measurement 51 Degree
_________________

S 13-106 S 13-106 A S 13-106 B S 13-106 C S 13-127 S 13-127 A S 13-127 C S 13-212 S 13-213 S 13-327 S13-327A S14-205 S14-205 A

NS300-1W400
23300-1W400
23300-10T01
23300-1W400
23300-2T700
23300-3T700
23300-45N51
23300-6K200
23300-6T000
23300-6T001
23300-6T00A
23300-7F400
23300-80G00
23300-80G01
23300-45N50
23300-58N00
23300-65N50
23300-6K200
23300-1W40A
23300-6T000RE
23300-6T001RE
