Transmission Repair Kit Toyota Landcrusier, Suzuki Grand Vitara TRANS STAR

’03 – ’09 Lexus LX470, GX470 4WD
’06 – ’08 Suzuki Grand Vitara RWD/ 4WD
’03 – ’07 Toyota Land Cruiser 4WD
’07 – ’14 Toyota FJ Cruiser RWD/4WD
’03 – 118 Toyota 4Runner RWD/4WD

TRANS MODEL:
A750F
A750E

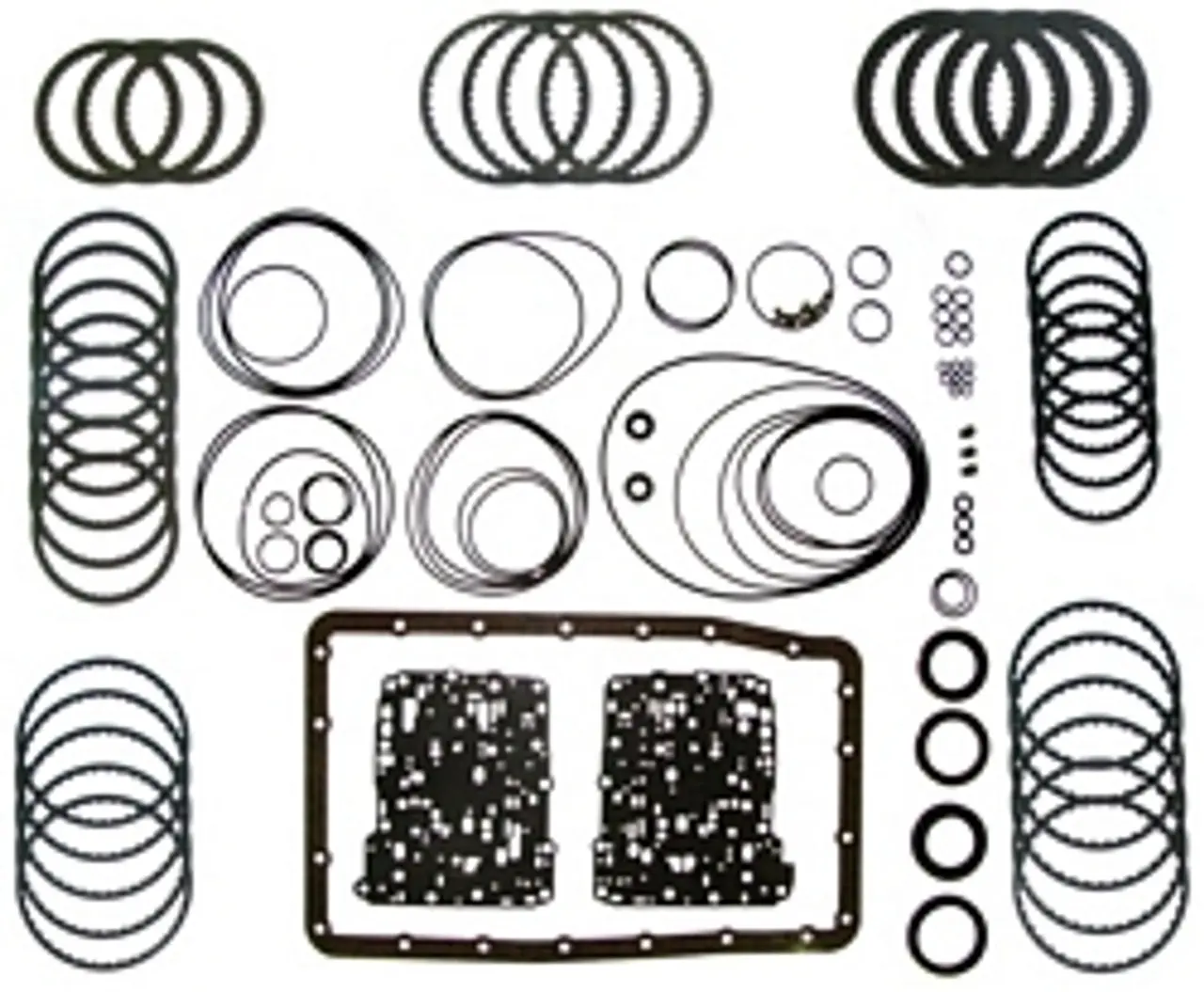

This Kit Contains

——————————
Overhaul Kit
# 147002- Overhaul Kit × 1
# J147100- Friction; B1 × 4
# 147104- Friction; B3 × 4
# 147106- Friction; C2 × 6
# 147108- Friction; C1 × 7
# J147110- Friction; C3 × 5
# J147112- Friction; B2 × 3
# J147114- Friction; B4 Clutch × 8
# 147120- Steel; B1; .094″ Thick, 13 Teeth, 6.280″ Outer Diameter, 5.527″ Inner Diameter × 4
# 147124- Steel; B3; .079″ Thick, 16 Teeth, 5.194″ Inner Diameter × 4
# 147126- Steel; C2; .071″ Thick, 24 Teeth, 5.866″ Inner Diameter × 6
# 147128- Steel; C1; .071″ Thick, 24 Teeth, 4.173″ Inner Diameter × 6
# 147130- Steel; C3; .095″ Thick, 24 Teeth, 5.866″ Inner Diameter × 4
# 147132- Steel; B2; .079″ Thick, 13 Teeth, 4.537″ Inner Diameter × 3
# 147134- Steel; B4; .071″ Thick, 16 Teeth, 4.922″ Inner Diameter × 7
# A147985- Balance Piston; C2 Clutch Balance, Bonded Piston × 1
